HomeStore

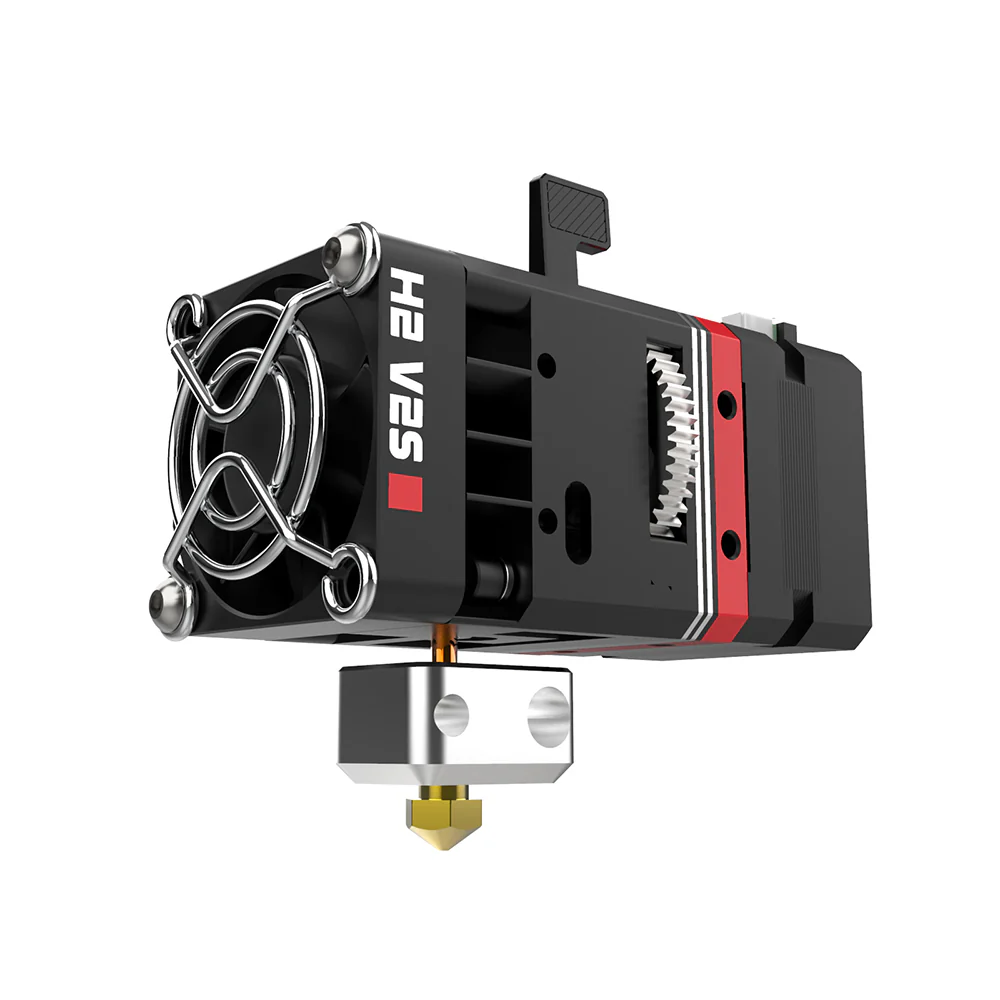

BIQU H2 V2S Extruder For B1 BX Ender 3/ 3 V2/5/6 CR6/10

BIQU H2 V2S Extruder For B1 BX Ender 3/ 3 V2/5/6 CR6/10

Product Description

H2 V2S

Dual Gear | Direct Drive | Cost-effective Choice

195g lightweight

Support 270℃

Dual gear 7:1

Labor-saving level

The structure of H2 V2S is compact, neat and lightweight, which can greatly reduce the inertia of the motion axis.

Light & Compact

Light weight, Low inertia, better positional accuracy.

It was built with 6061 T6 aluminium alloy, screw tensioner and ingenious switch lever.

Exquisite Craftsmanship

6061 T6 aluminum alloy body ensures long-lasting performance even under extreme conditions.

With a gentle push, you can quickly import filament. With a pushback, you can quickly lock the position of the filament.

Easier Filament Feeding

Upgraded switch lever frees your hands when feeding.

H2 V2S is built with a quick dissipation structure.

Efficient Heat Dissipation

Heatsink design optimized to improve heat dissipation, prevent heat creep and ensure longer lifespan of extruder.

H2 V2S has a powerful extrusion system.

Powerful Extrusion System

Dual gear and a gear ratio of 7:1 for exceptional pushing force.

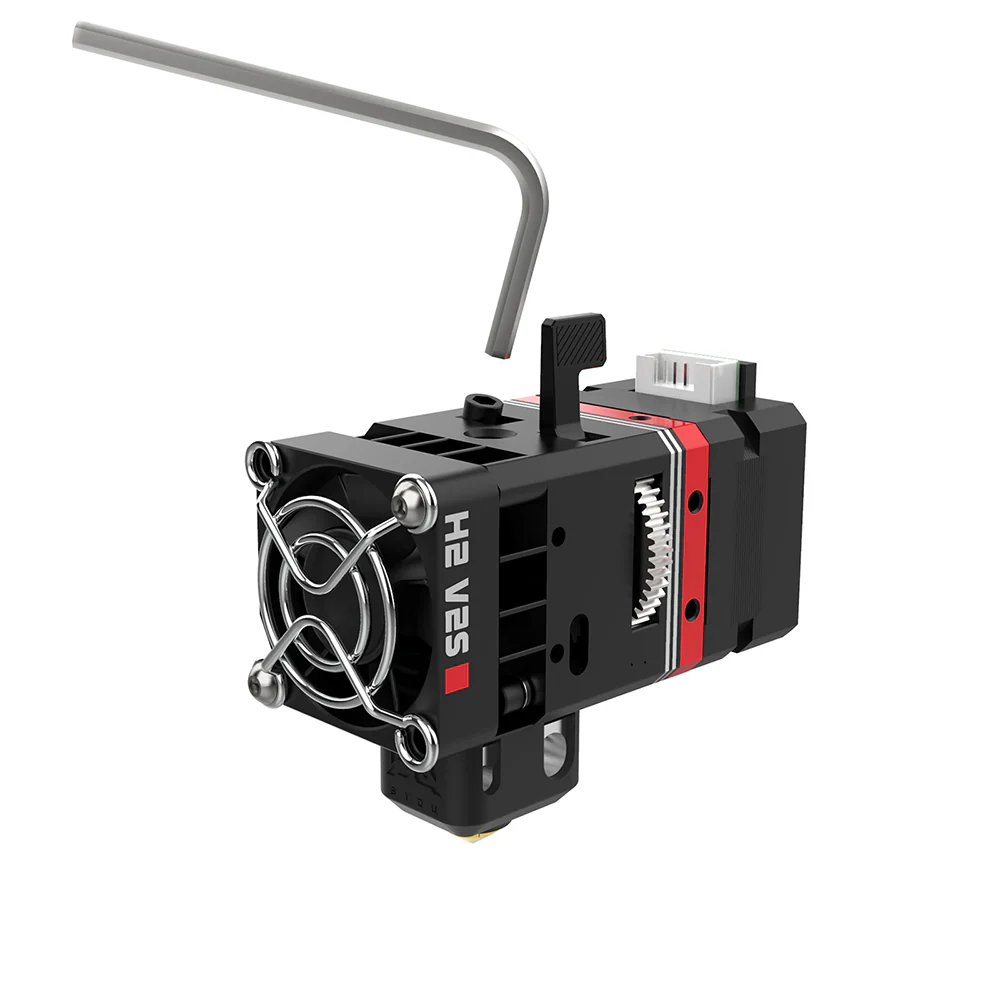

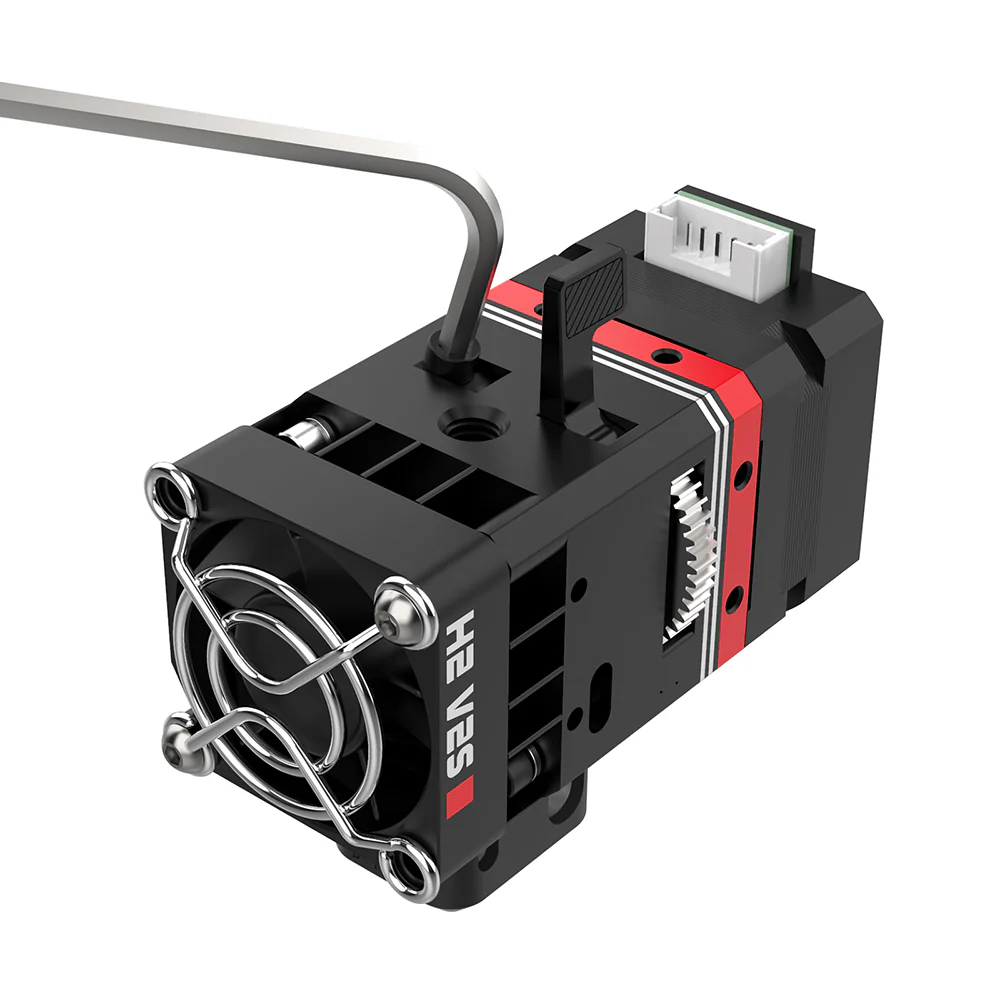

Use a screw to adjust the tightness of the filament.

Great for flexible filament

Adjust the screw tensioner to accommodate different drive gear tension and improve printing with flexible filament.

High-quality durable heatbreak, heating blocks, and nozzles to make it work within 270℃.

High-Temp Printing

Bi-metal heatbreak enables high-temp printing at 270℃ with silicone sock for insulation.

BIQU H2 V2S can be used to create models printed with a variety of filaments.

Perfect Compatibility

Compatible with numerous materials, ranging from PLA and ABS to TPU, Nylon and PETG.

The H2 V2S Complete Kit includes one pre-assembled extruder and other tools to set it on the 3d printer.

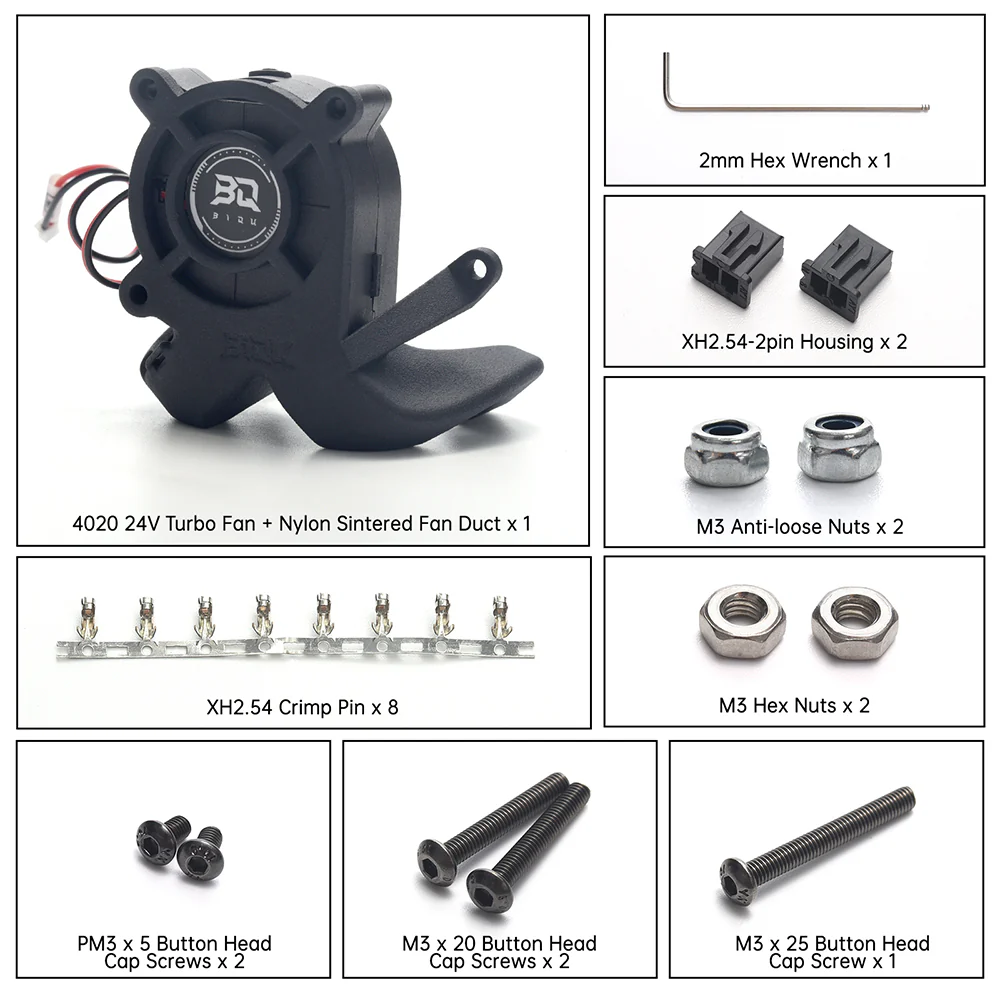

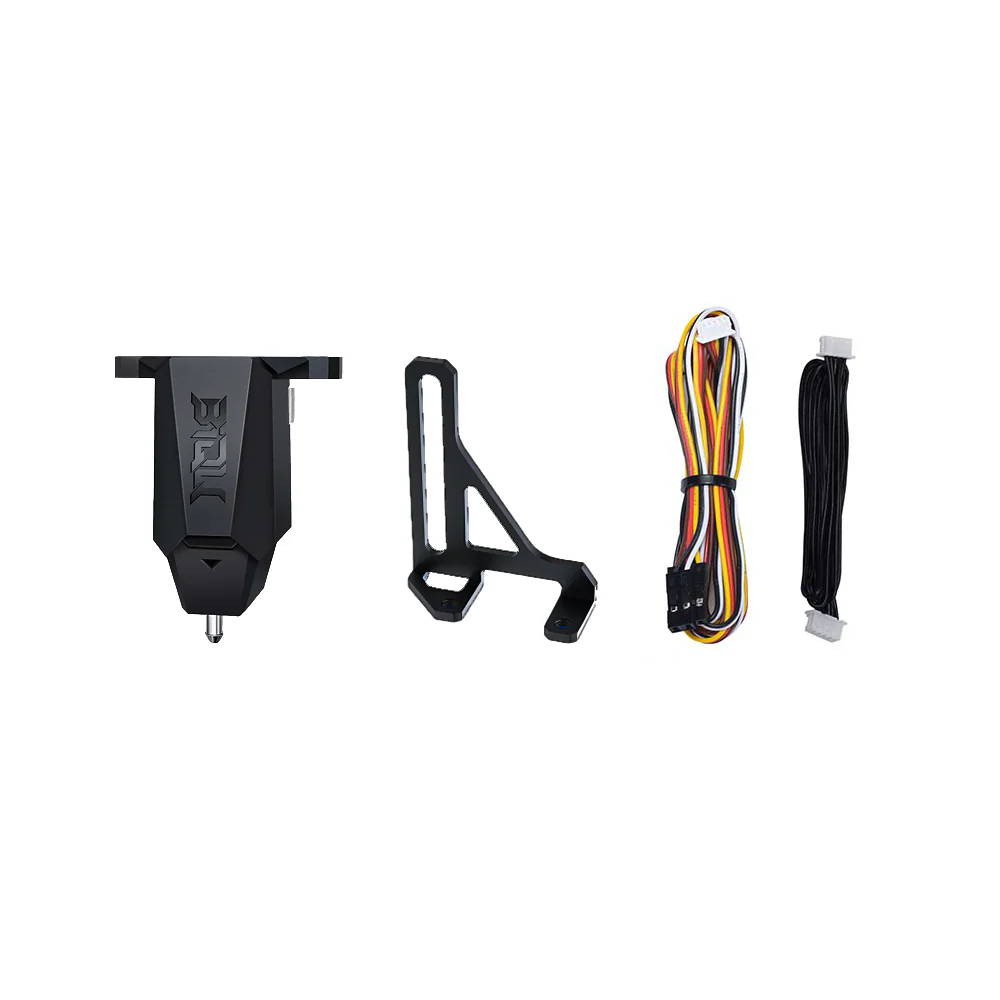

What's in the Box

The H2 V2S Complete Kit includes one pre-assembled extruder, a colling fan, cables, screws and other tools to set it on the 3d printer.

Dimensions & Specs

The dimensions of H2 V2S.

Extrusion Method

Dual Gear Extrusion

Maximum Printing Temperature

270℃

Weight

195g (including Heater Cartridge, Thermistor, and Fan)

Maximum Extrusion Force

7.5kg (depending on the filament)

Extrusion (based on the existing)

600mm3/min (depending on the filaments)

E-step

932/mm at 16 microstep (Further calibration is recommended)

Klipper Rotation Distance

3.433

Recommended Motor Current

800mA

Gear Ratio

7:1

Drive Gear Circumference

24.5mm

Filament Diameter and Tolerance

1.75±0.05mm

Thermistor Type

NTC100K

Heater Cartridge Power

40W

Heater Cartridge Voltage

24V

*Note: Not compatible with standard NEMA14 motor.

Quick View User Manual

STL files

*Note: Only needs a model bracket, H2 V2S is suitable for almost all hot-selling 3D printers. Here are the files for B1, Artillery X1 Genius, Pedro Palacio, CR10-S Pro v2, Ender 3/3 V2, Ender 5, Ender 6, Anycubic Mega, CR-10 V2/V3, Creality CR-6

Select Shipping from
Select Options
From $1.39

Original: $4.62

-70%
BIQU H2 V2S Extruder For B1 BX Ender 3/ 3 V2/5/6 CR6/10—

$4.62

$1.39
Product image 1
Product image 2
Product image 3
Product image 4
Product image 5
Product image 6
Product image 7
Product image 8
Product image 9
Product image 10
Product image 11
Product image 12

Description

Product Description

H2 V2S

Dual Gear | Direct Drive | Cost-effective Choice

195g lightweight

Support 270℃

Dual gear 7:1

Labor-saving level

The structure of H2 V2S is compact, neat and lightweight, which can greatly reduce the inertia of the motion axis.

Light & Compact

Light weight, Low inertia, better positional accuracy.

It was built with 6061 T6 aluminium alloy, screw tensioner and ingenious switch lever.

Exquisite Craftsmanship

6061 T6 aluminum alloy body ensures long-lasting performance even under extreme conditions.

With a gentle push, you can quickly import filament. With a pushback, you can quickly lock the position of the filament.

Easier Filament Feeding

Upgraded switch lever frees your hands when feeding.

H2 V2S is built with a quick dissipation structure.

Efficient Heat Dissipation

Heatsink design optimized to improve heat dissipation, prevent heat creep and ensure longer lifespan of extruder.

H2 V2S has a powerful extrusion system.

Powerful Extrusion System

Dual gear and a gear ratio of 7:1 for exceptional pushing force.

Use a screw to adjust the tightness of the filament.

Great for flexible filament

Adjust the screw tensioner to accommodate different drive gear tension and improve printing with flexible filament.

High-quality durable heatbreak, heating blocks, and nozzles to make it work within 270℃.

High-Temp Printing

Bi-metal heatbreak enables high-temp printing at 270℃ with silicone sock for insulation.

BIQU H2 V2S can be used to create models printed with a variety of filaments.

Perfect Compatibility

Compatible with numerous materials, ranging from PLA and ABS to TPU, Nylon and PETG.

The H2 V2S Complete Kit includes one pre-assembled extruder and other tools to set it on the 3d printer.

What's in the Box

The H2 V2S Complete Kit includes one pre-assembled extruder, a colling fan, cables, screws and other tools to set it on the 3d printer.

Dimensions & Specs

The dimensions of H2 V2S.

Extrusion Method

Dual Gear Extrusion

Maximum Printing Temperature

270℃

Weight

195g (including Heater Cartridge, Thermistor, and Fan)

Maximum Extrusion Force

7.5kg (depending on the filament)

Extrusion (based on the existing)

600mm3/min (depending on the filaments)

E-step

932/mm at 16 microstep (Further calibration is recommended)

Klipper Rotation Distance

3.433

Recommended Motor Current

800mA

Gear Ratio

7:1

Drive Gear Circumference

24.5mm

Filament Diameter and Tolerance

1.75±0.05mm

Thermistor Type

NTC100K

Heater Cartridge Power

40W

Heater Cartridge Voltage

24V

*Note: Not compatible with standard NEMA14 motor.

Quick View User Manual

STL files

*Note: Only needs a model bracket, H2 V2S is suitable for almost all hot-selling 3D printers. Here are the files for B1, Artillery X1 Genius, Pedro Palacio, CR10-S Pro v2, Ender 3/3 V2, Ender 5, Ender 6, Anycubic Mega, CR-10 V2/V3, Creality CR-6
